Sniffing Inside a Thread with Scapy - Python

skyper s profile image
By: skyper
April 4, 2018
Scapy is an incredible tool when it comes to playing with the network. As it is written on its official website, Scapy can replace a majority of network tools such as nmap, hping and tcpdump. However, you might encounter some issues when using the sniff function inside a thread.In this blog post, I review the different common issues about sniffing the network inside a thread with Scapy and suggest a solution to solve them.

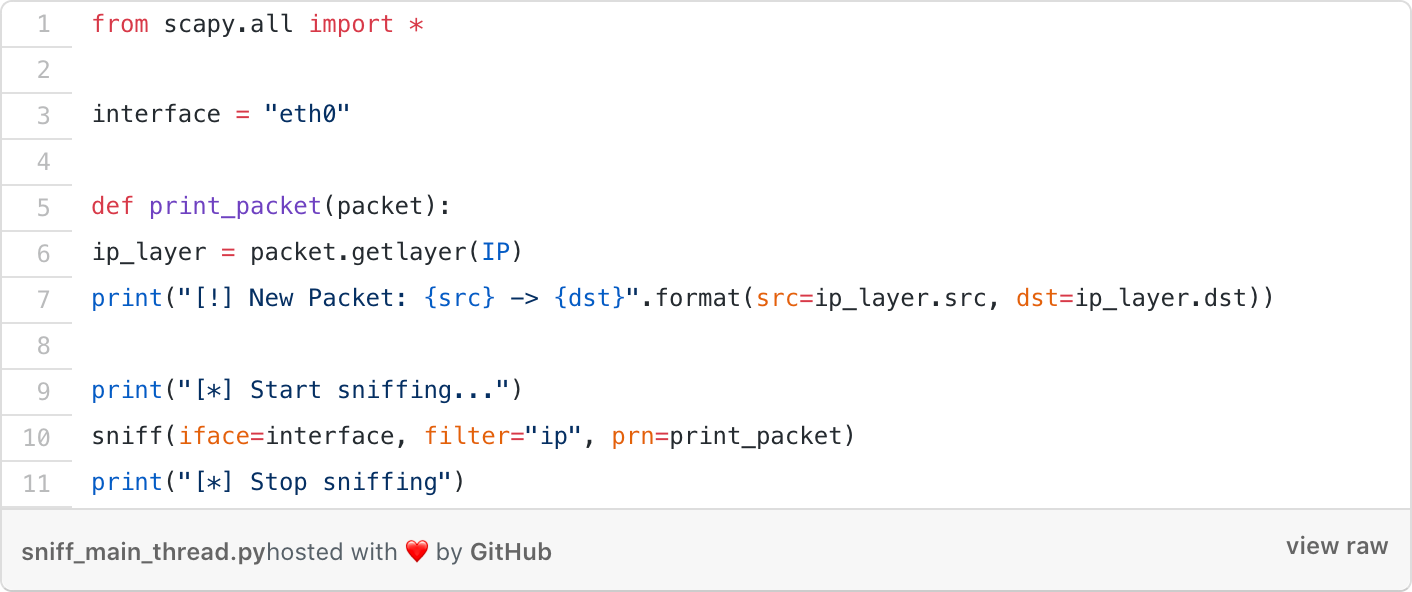

One of the features offered by Scapy is to sniff the network packets passing through a computer’s NIC. Below is a small example:



github

This little sniffer displays the source and the destination of all packets having an IP layer:
class="highlight">
$ sudo python3 sniff_main_thread.py[*] Start sniffing...[!] New Packet: 10.137.2.30 -> 10.137.2.1[!] New Packet: 10.137.2.30 -> 10.137.2.1[!] New Packet: 10.137.2.1 -> 10.137.2.30[!] New Packet: 10.137.2.1 -> 10.137.2.30[!] New Packet: 10.137.2.30 -> 216.58.198.68[!] New Packet: 216.58.198.68 -> 10.137.2.30[!] New Packet: 10.137.2.30 -> 216.58.198.68[!] New Packet: 10.137.2.30 -> 216.58.198.68[!] New Packet: 216.58.198.68 -> 10.137.2.30[!] New Packet: 216.58.198.68 -> 10.137.2.30[!] New Packet: 10.137.2.30 -> 216.58.198.68[!] New Packet: 10.137.2.30 -> 216.58.198.68[!] New Packet: 216.58.198.68 -> 10.137.2.30[!] New Packet: 10.137.2.30 -> 216.58.198.68^C[*] Stop sniffing
It will continue to sniff network packets until it receives a keyboard interruption (
CTRL+C

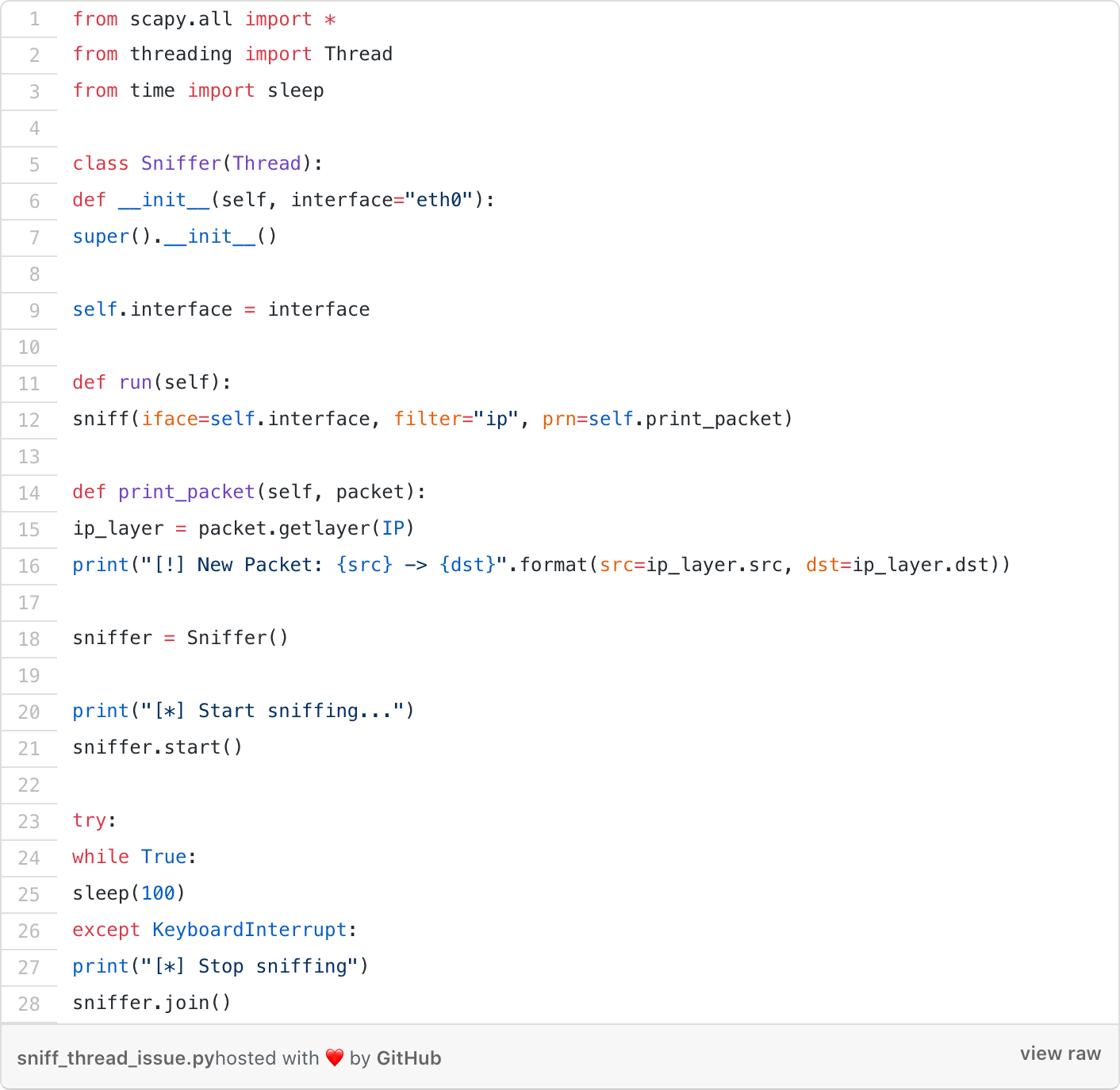

).Now, let’s look at a new example: github github This piece of code does exactly the same thing as the previous one except that this time the
sniff
function is executed inside a dedicated thread. Everything works well with this new version except when it comes to stopping the sniffer:
class="highlight">
$ sudo python3 sniff_thread_issue.py[*] Start sniffing...[!] New Packet: 10.137.2.30 -> 10.137.2.1[!] New Packet: 10.137.2.30 -> 10.137.2.1[!] New Packet: 10.137.2.1 -> 10.137.2.30[!] New Packet: 10.137.2.1 -> 10.137.2.30[!] New Packet: 10.137.2.30 -> 216.58.198.68[!] New Packet: 216.58.198.68 -> 10.137.2.30[!] New Packet: 10.137.2.30 -> 216.58.198.68[!] New Packet: 10.137.2.30 -> 216.58.198.68[!] New Packet: 216.58.198.68 -> 10.137.2.30[!] New Packet: 216.58.198.68 -> 10.137.2.30[!] New Packet: 10.137.2.30 -> 216.58.198.68[!] New Packet: 10.137.2.30 -> 216.58.198.68[!] New Packet: 216.58.198.68 -> 10.137.2.30[!] New Packet: 10.137.2.30 -> 216.58.198.68^C[*] Stop sniffing^CTraceback (most recent call last): File "sniff_thread_issue.py", line 25, in <module> sleep(100)KeyboardInterruptDuring handling of the above exception, another exception occurred:Traceback (most recent call last): File "sniff_thread_issue.py", line 28, in <module> sniffer.join() File "/usr/lib/python3.5/threading.py", line 1054, in join self._wait_for_tstate_lock() File "/usr/lib/python3.5/threading.py", line 1070, in _wait_for_tstate_lock elif lock.acquire(block, timeout):KeyboardInterrupt^CException ignored in: <module 'threading' from '/usr/lib/python3.5/threading.py'>Traceback (most recent call last): File "/usr/lib/python3.5/threading.py", line 1288, in _shutdown t.join() File "/usr/lib/python3.5/threading.py", line 1054, in join self._wait_for_tstate_lock() File "/usr/lib/python3.5/threading.py", line 1070, in _wait_for_tstate_lock elif lock.acquire(block, timeout):KeyboardInterrupt
When
CTRL+C
is pressed, a
SIGTERM
signal is sent to the process executing the Python script, triggering its exit routine. However, as said in the official documentation about signals, only the main thread receives signals:
Python signal handlers are always executed in the main Python thread, even if the signal was received in another thread.
As a result, when
CTRL+C
is pressed, only the main thread raises a
KeyboardInterrupt
exception. The sniffing thread will continue its infinite sniffing loop, blocking at the same time the call of
sniffer.join()
.So, how can the sniffing thread be stopped if not by signals? Let’s have a look at this next example: github github As you may have noticed, we are now using the
stop_filter
parameter in the
sniff
function call. This parameter expects to receive a function which will be called after each new packet to evaluate if the sniffer should continue its job or not. An
Event
object named
stop_sniffer
is used for that purpose. It is set to
true
when the
join
method is called to stop the thread.Is this the end of the story? Not really…
class="highlight">
$ sudo python3 sniff_thread_issue_2.py[*] Start sniffing...^C[*] Stop sniffing[!] New Packet: 10.137.2.30 -> 10.137.2.1
One side effect remains. Because the
should_stop_sniffer
method is called only once after each new packet, if it returns
false
, the sniffer will continue its job, going back to its infinite sniffing loop. This is why the sniffer stopped one packet ahead of the keyboard interruption.A solution would be to force the sniffing thread to stop. As explained in the official documentation about threading, it is possible to flag a thread as a daemon thread for that purpose:
A thread can be flagged as a “daemon thread”. The significance of this flag is that the entire Python program exits when only daemon threads are left. The initial value is inherited from the creating thread. The flag can be set through the daemon property or the daemon constructor argument.
However, even if this solution would work, the thread won’t release the resources it might hold:
Daemon threads are abruptly stopped at shutdown. Their resources (such as open files, database transactions, etc.) may not be released properly. If you want your threads to stop gracefully, make them non-daemonic and use a suitable signalling mechanism such as an Event.
The
sniff
function uses a socket which is released just before exiting, after the sniffing loop:
class="highlight">
try: while sniff_sockets: // Sniffing loopexcept KeyboardInterrupt: passif opened_socket is None: for s in sniff_sockets: s.close()return plist.PacketList(lst,"Sniffed")
Therefore, the solution I suggest is to open the socket outside the sniff function and to give it to this last one as parameter. Consequently, it would be possible to force-stop the sniffing thread while closing its socket properly:

github

github

Et voilà! The sniffing thread now waits for 2 seconds after having received a keyboard interrupt, letting the time to the sniff function to terminate its job by itself, after which the sniffing thread will be force-stopped and its socket properly closed from the main thread.
